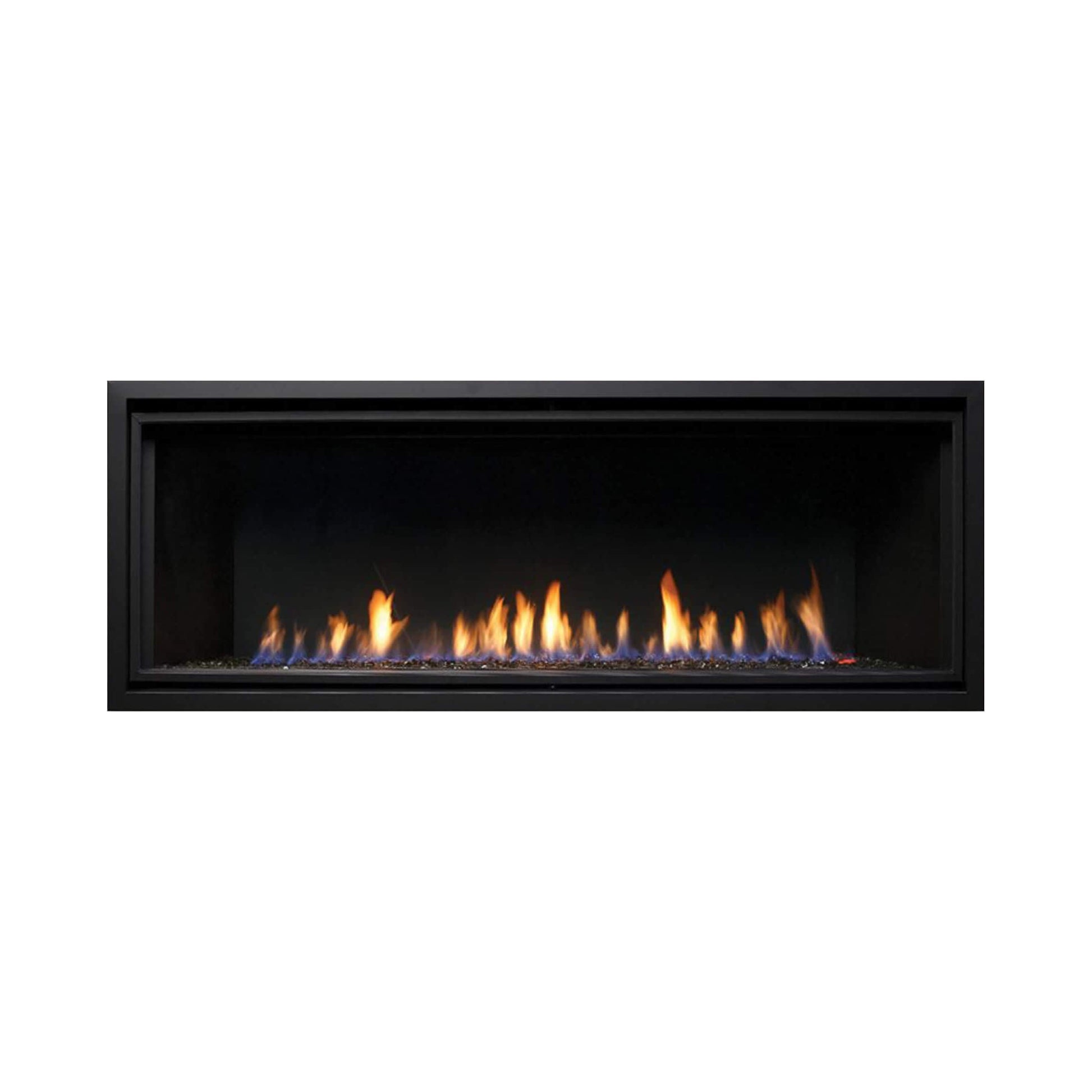

Kingsman Linear Direct Vent Fireplace – 60" Zero-Clearance Design

Overview

The Kingsman ZCVRB60 is a 60-inch zero-clearance linear direct vent fireplace built for homeowners who want a modern architectural centerpiece with dependable year-round performance. Its wide 61 1/8” × 19 15/16” viewing area, clean face design, and sealed combustion system deliver an impressive flame while maintaining excellent efficiency and flexible installation options. Certified for use in bedrooms, mobile homes, and sitting rooms, the ZCVRB60 offers both Millivolt and IPI ignition systems with Natural Gas or Liquid Propane configurations.

Ships from the USA.

Why You’ll Want This

This fireplace brings sleek, contemporary styling into any room, with a long linear flame presentation and glass media that elevates modern interiors. Homeowners appreciate the ability to operate during power outages (Millivolt), the optional programmable thermostat controls, and Kingsman’s reliability backed by robust construction. When paired with a vented chase, the unit can achieve cool-touch surfaces and reduced mantel clearances—ideal for clean, built-in designs.

Key Features

• Large 60” Linear Display: Expansive panoramic flame behind tempered glass.
• Direct Vent System: Uses 5/8” flex or hard pipe with top-vent configuration.
• High Output: Up to 35,000 BTU depending on fuel and ignition type.
• Millivolt or IPI Ignition: Choose reliable always-on performance or advanced electronic control.
• Decorative Bronze Glass Included: Enhances flame depth and glow.
• Safety Screen Barrier: Included standard for family-friendly operation.
• Optional Enhancements: Fan kit, halogen accent lighting, porcelain reflective liner, multicolored cannonballs, remote controls, and surround trims.
• Cool-Touch Wall Capability: Achievable with vented chase installation per Kingsman guidelines.

Specifications

Full technical specifications are available in the Kingsman product documents:

• ZCVRB60 Product Brochure
• Installation & Operation Manual

• Model: ZCVRB60
• Fuel Type: Natural Gas or Liquid Propane
• Ignition Options: Millivolt (MV) or Intermittent Pilot (IPI/PF1)
• Input (Max): 35,000 BTU
• Input (Min): 28,000 BTU (LP MV), 23,000 BTU (NG IPI)
• Viewing Area: 61 1/8" W × 19 15/16" H
• Glass Type: Tempered
• Efficiency: 55.27% / 56.66% (MV / IPI)
• Actual Dimensions:
  Width: 66 3/16"
  Height: 39 9/16"
  Depth: 19 1/4"
• Vented Chase Minimum Opening: 200 sq/in (ZCVRB60)
• Minimum Enclosure Height: 76"
• Installation Options: Front or side chase grills, or top-open chase per manual requirements.

What’s Included

• ZCVRB60 Fireplace (your chosen fuel & ignition variant)
• Decorative bronze glass media
• Safety screen barrier
• Installation & operation manual
• Optional add-ons if selected: fan kit, accent lighting, remote controls, surrounds, reflective liner

Shipping & Delivery

• Ships from: USA
• Freight Method: LTL palletized shipment with curbside delivery
• Signature Required: Yes
• Packaging: Heavy-duty crate with protective framing
• Delivery Time: Typically 3–10 business days depending on location
• Inspection Policy: Inspect upon delivery; report any damage within 24 hours

Warranty

Kingsman provides a manufacturer-backed warranty covering the firebox, burner system, glass, and operational components. Warranty duration varies by part and use case. For full warranty details, refer to the official manual:

Download Kingsman ZCVRB60 Warranty & Manual
